LD-5/LD-6
The Marshall Stability Tester is used by highway departments, contractors, engineers, testing laboratories and other government agencies to determine the stability and flow value of the bituminous mixture.
The Marshall Stability Tester is used by highway departments, contractors, engineers, testing laboratories and other government agencies to determine the stability and flow value of the bituminous mixture. It can accurately judge the failure point of bituminous mixture to provide a basis for the design of the ratio of bituminous mixture, and can also be used to test the construction quality of asphalt pavements.
TECHNICAL PARAMETERS
LD-5
Max Capacity: 50 KN
Test Rate: 50.8 mm/min
Cross Head Travel: 70mm
Displacement Probe Travel: 15mm
Vertical/ horizontal Clearance: 300mm/270mm
Marshall Stability Mould: 4” Diameter, 6” Diameter(optional)
Dimension: 590X310X750mm, approx.90kg
Power: 220V, 50/60Hz, 1 ph, 0.5Hp,2.3A

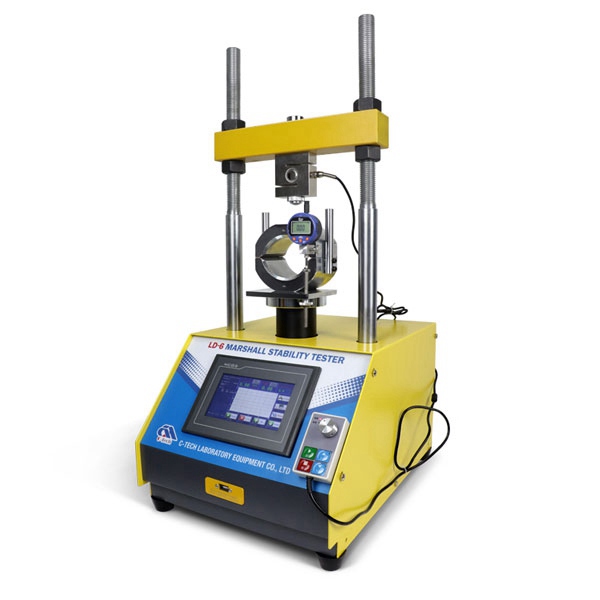

LD-6
Loading rate: 50±5mm/min
Indenter diameter: 101.6±0.16 mm 152.4±0.2 mm
Pressure measuring range: 25kN±0.1kN 50kN±0.1kN
Flow value range: 0－15.00mm
Work environment: ≤30℃, humidity≤85%
Power: 220V, 700W
Dimensions: 700×500×900mm, approx.100kg
