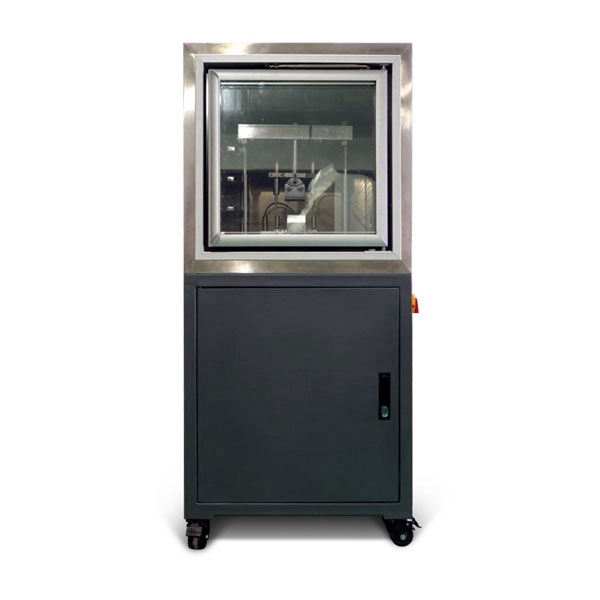

HTHY-0730

It is mainly used in the laboratory to evaluate the properties of asphalt mixture. The self-developed control system and temperature control system enable the equipment to meet the requirements of multiple tests, and multiple tests can be completed with different fixtures.

APPLICATION

l  Asphalt mixture bending test

l  Crack growth performance test of asphalt mixture (Semi-Circular Bend method)

l  Marshall stability test

FEATURES

l  Using high-hardness high-quality steel as the frame, the structure is simple and stable.

l  The adopted LVDT has high precision and stability.

l  Adopt customized special high-performance, high-stability pressure sensor.

l  The temperature sensor, displacement sensor and pressure sensor are linearly modulated to ensure the accuracy within the full scale.

l  The position of the sensor is reasonable, and the test result is more accurate.

l  Test results can be automatically generated and saved, and related curves can be displayed.

l  Equipped with a constant temperature chamber with cooling and heating functions.

l  Using PWM modulation method for temperature PID control, wide temperature control range, high precision and stability.

l  Test fixtures can be customized for different tests.

l  16-bit adaptive data acquisition system with a sampling frequency up to 5KHz.

TECHNICAL PARAMETERS

Loading capacity: 30 kN

Loading stroke: 50mm

Displacement sensor: 0~20mm

Displacement sensor accuracy: ± 0.01mm

Pressure sensor: 0~30 kN

Pressure sensor accuracy: ± 30N

Column spacing: 350mm

Test space: 610x600x600 mm

Temperature control range: -20°C~+70°C

Temperature control accuracy: ± 1°C

Power supply: 380V 50Hz

Power: 5kW

Dimensions: 700 x 840 x 1550mm

Weight: 200kg
