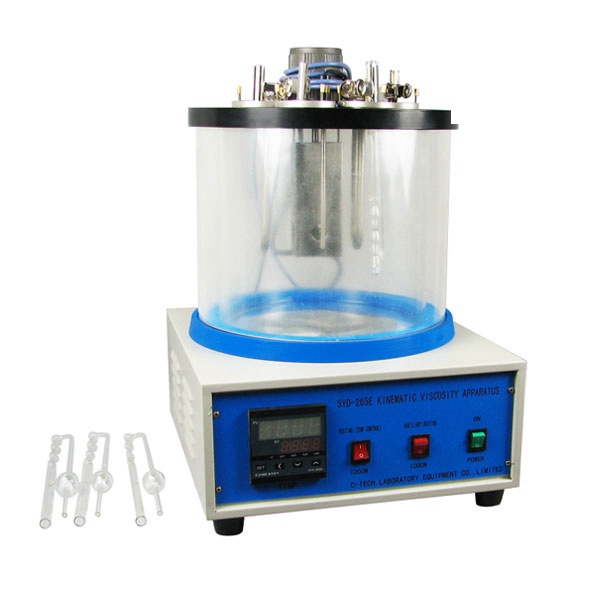

SYD-265E

The Kinematic viscosity apparatus is designed and made as per the T0619 "Asphalt Kinematic Viscosity Test (Capillary Viscometer Methods". It is suitable to determine kinematic viscosity of asphalt at a certain temperature.

TECHNICAL PARAMETERS

Power supply: AC 220V± 10%, 50 Hz;

Heating power: Two grades; 1000 W for auxiliary heating and 600 W for temperature controlling

Bath temperature: Ambient temperature~180.0°C

Temperature controlling accuracy: ± 0.1°C;

Mercury thermometer: (1) Rod type (2) Scale division: 0.1°C; (3) Measurement range: 100~150°C or 150~200°C;

Bath cubage: Not less than 23 L

Sample quantity: 3 piece at the same time

Stirring motor: 6 W, 1200 RPM

Ambient temperature: -10°C~+35°C

Relative humidity: <85%

Temperature sensor: Industrial platinum resistance, PT100

Total Power consumption: Not more than 1800 W

Capillary viscometer: 4 pieces of reserve-flow capillary viscometer tubes in a group; Their diameters are 1.26mm, 1.48mm, 1.88mm, 2.2mm. The users should prepare Ubbelohde type viscometer tubes by themselves.
