HTHY-0709/HTHY-0710

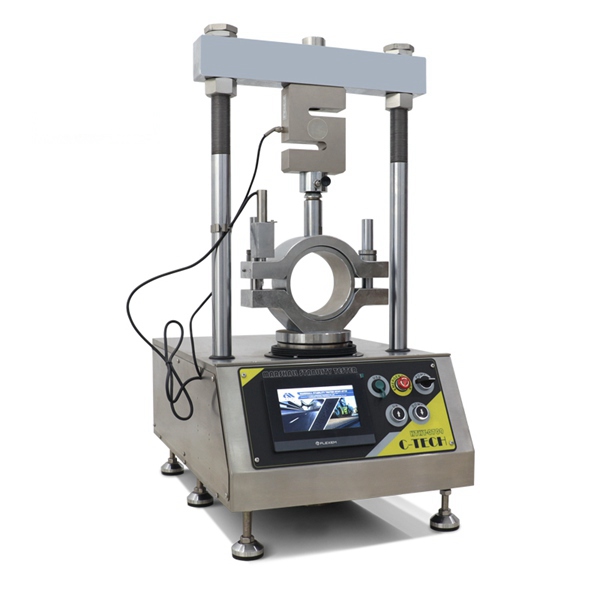

The Marshall Stability Tester is used by highway departments, contractors, engineers, testing laboratories and other government agencies to determine the stability and flow value of the bituminous mixture. It can accurately judge the failure point of bituminous mixture to provide a basis for the design of the ratio of bituminous mixture, and can also be used to test the construction quality of asphalt pavements.

The equipment can be used for other related tests by replacing different test fixtures. Touch screen control, simple to operate, real-time data display, and it can be connected to an A4 printer or thermal printer to print test results directly.

Features

·Touch screen control and display, can save working parameters, simple to operate.

·The data can be displayed in real time during the experiment.

·Use high-precision displacement sensors and pressure sensors.

·With overload protection function.

·Can be connected to A4 printer or thermal printer to print test results.

·The base is made of stainless steel.

TECHNICAL PARAMETERS

HTHY-0709

Maximum load: 50kN

Stability range: ≤40kN, error ≤±0.1kN

Flow value range: 0~20mm, error ≤±0.05mm

Platen speed: 50±5mm/min

Interface: Equipped with serial output, network interface, connect to the printer

Power: ≤600W, motor power 400W

Working voltage: AC220V±10%, 50Hz

Ambient temperature: 0~60℃

Dimensions(mm): 430*650*900mm

Weight: 90kg

HTHY-0710

Maximum load: 100kN

Stability range: 0~95kN, error ≤±0.1kN

Flow value range: 0~20mm, error ≤±0.05mm

Platen speed: 0~50mm/min adjustable

Interface: Equipped with serial port output and networking interface (networking function needs to be customized)

Power: 1500W

Working voltage: AC220V±10%, 50Hz

Ambient temperature: 0~60℃

Dimensions(mm): 500*760*1000mm

Weight: 120kg
