SYD-0623

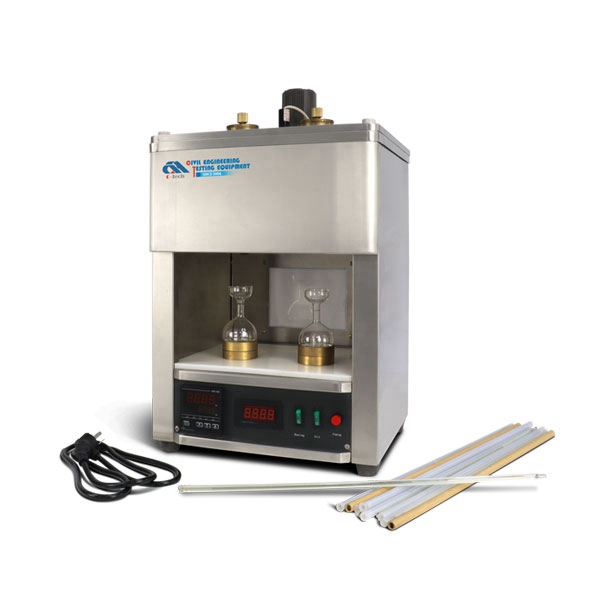

The Saybolt viscosity apparatus mainly comprises the bath, bath temperature control instrument and timer components. The bath is made of stainless steel, equipped with heating tube, a temperature control table automatically control, to ensure that the bath in the heat transfer oil and other media at 240 ℃.

TECHNICAL PARAMETERS

Power supply: AC 220V± 10%, 50 Hz

Instrument type: desktop

Work: dual detection, parallel test

Sample acceptance bottle specifications: 60 ± 0.05ml;

Bath heating power: 1000W

Bath operating temperature: room temperature ~ 240.0 ℃;

Bath temperature control accuracy: ± 0.1 ℃

Test time range: 0.0s ~ 1999.9s

Test timing accuracy: ± 0.1s;

Ambient temperaturer: ≤ 35 ℃

Relative humidity: ≤ 85%

Dimensions: 400x400x800mm
